Screen exposure units

Kissel+Wolf supplies screen exposure units from KIWO and ATMA, from entry-level LED exposure to large-format vacuum systems, with local sales, installation and support across Australia and New Zealand.

01

Find the right exposure unit

KIWO UV LED units cover small to large-format exposure with a vacuum blanket and automatic timing. ATMA adds high-power exposure for fine detail and clean-room work. Pick what you need to do.

02

KIWO UV LED exposure units

Vacuum-blanket exposure with automatic timing, built for consistent results from job to job.

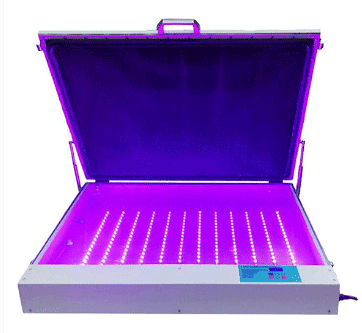

KIWO UV LED Small screen exposure unit with vacuum blanket open
KIWO

UV LED – Small

Screen exposure unit with vacuum blanket, oil-free vacuum pump and an automatic memory for repeat settings.

Max frame size
800 × 600mm
Vacuum pump
Oil-free
Work surface
Tempered glass
Build
Powder-coated steel body

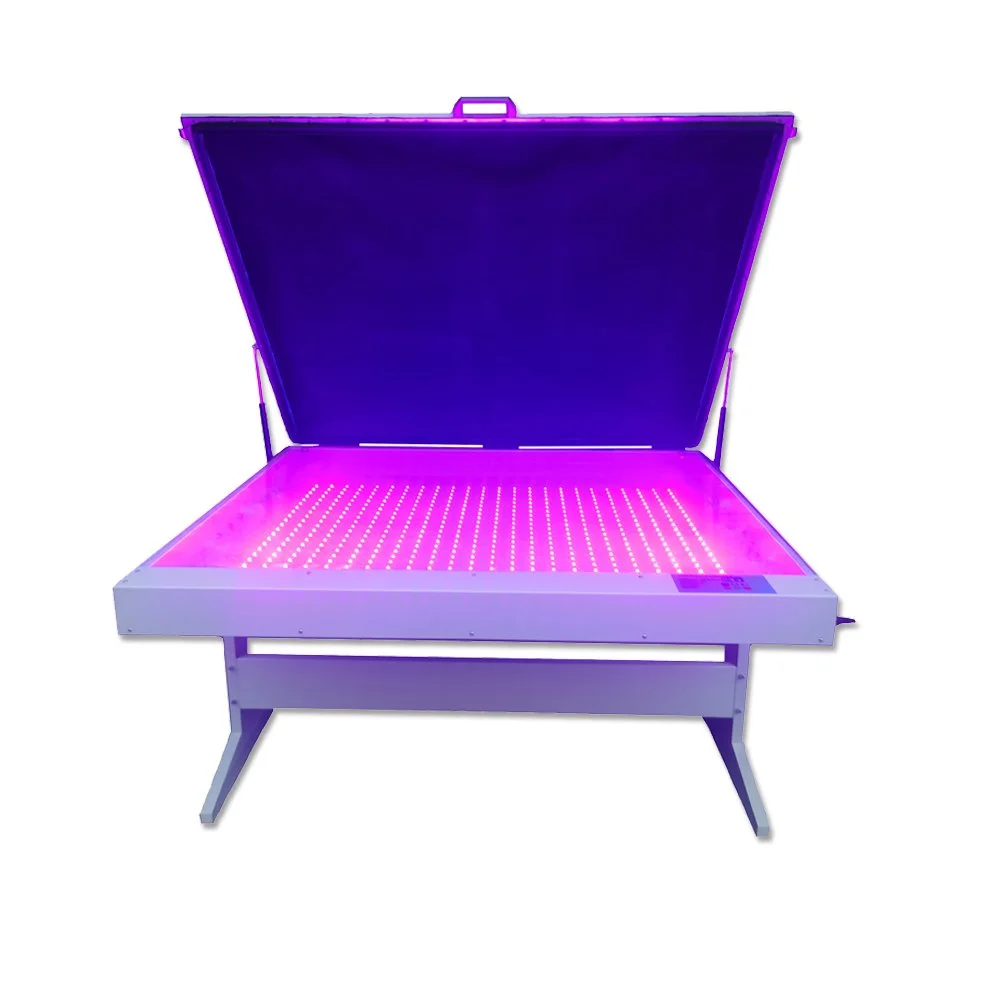

KIWO UV LED Large screen exposure unit, large-format vacuum exposure system
KIWO

UV LED – Large

576 high-intensity LED UV beads over a large exposure area, with a vacuum rubber blanket and PLC-controlled timer for sharp, consistent results.

Exposure area
1,050 × 1,250mm
UV source
576 LED beads
Timer
PLC, 0–999 seconds
Power
110–240V, 300W
Weight
126kg net
Packed size
146 × 132 × 30cm

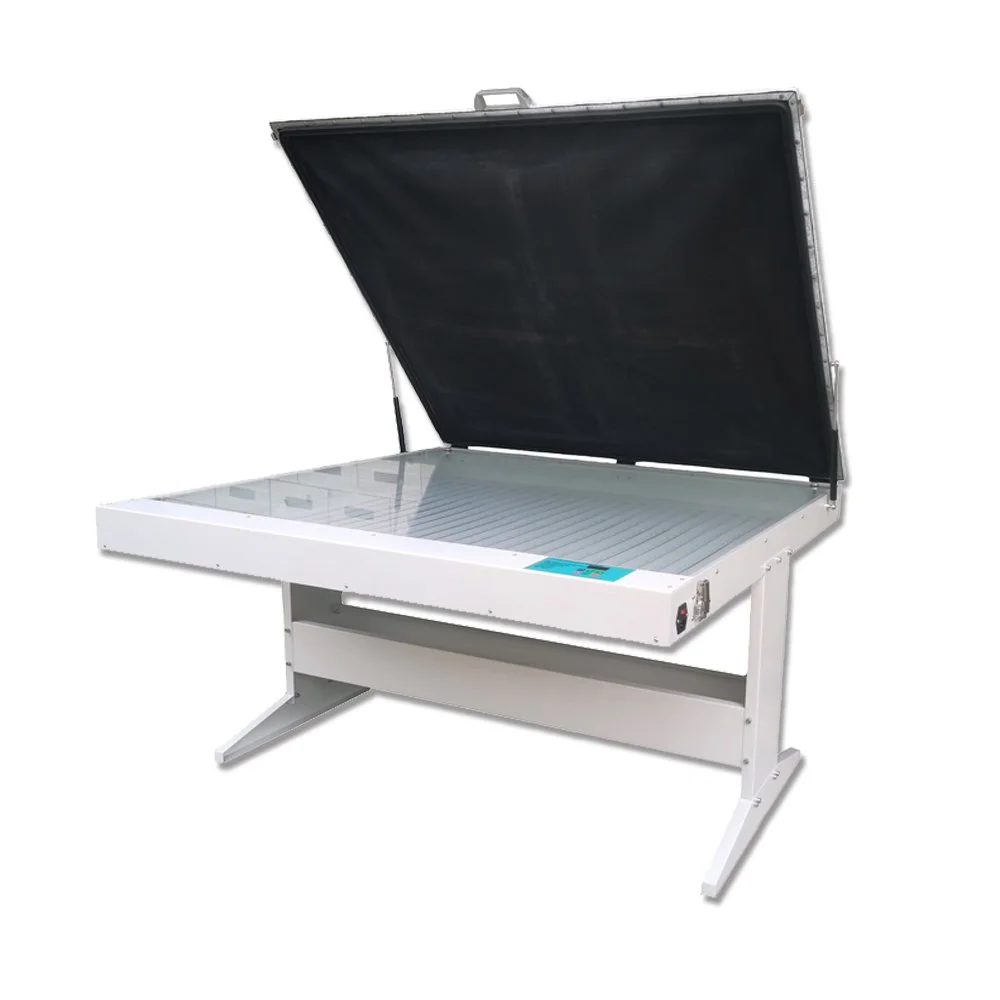

KIWO UV LED Large exposure unit with lid open showing the exposure bed
UV LED – Large, bed open
03

ATMA UV screen exposure unit

High-powered exposure with instant-emission UV lamps, for fine detail, high-definition images and clean-room screen-making.

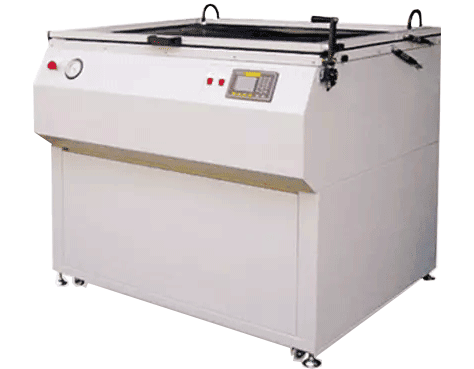

ATMA UV screen exposure unit with instant emission UV lamp
ATMA

UV screen exposure unit

Instant emission UV lamp with automatic precision UV ray control. High-speed vacuum system with a dust-free, oil-less, low-noise pump and a high tensile strength rubber vacuum blanket, suitable for direct or indirect exposure of fine detail and clean-room screen-making.

UV power
3,000W / 6,000W
Wave peak
360nm / 410nm
Vacuum
Dust-free, oil-less pump

Multiple exposure areas available: 650 × 900mm, 950 × 1,200mm, 1,350 × 1,350mm.

04

Why choose Kissel+Wolf

The right exposure unit for your screen size and detail, backed locally.

Small to large format

From the KIWO UV LED – Small up to large-format and clean-room ATMA systems.

Vacuum contact, every time

Vacuum blankets and oil-free pumps keep exposure sharp and consistent.

Film and emulsion matched

Capillary film and emulsions from the same supplier as your exposure unit.

Advice before you buy

Tell us your screen size and detail level and we will recommend the right unit.

05

Screen exposure questions

KIWO UV LED, ATMA, pricing and support.

What is the difference between the KIWO UV LED Small and Large?

The Small unit covers screens up to 800 × 600mm and suits lower volumes. The Large unit steps up to a 1,050 × 1,250mm exposure area with 576 LED beads and a PLC-controlled timer, suited to medium to large format work.

When should I choose the ATMA unit over the KIWO UV LED units?

ATMA suits fine-dot, high-definition images and clean-room screen-making that need higher UV power, with a choice of 3,000W or 6,000W lamps and three exposure area sizes up to 1,350 × 1,350mm.

Do these units include a vacuum system?

Yes. Every unit on this page uses a vacuum blanket or vacuum rubber blanket to hold the film and screen in tight contact for sharp, consistent exposure.

How much do these systems cost?

Pricing depends on configuration and screen size, so we quote on request. Use the contact form on this page and our team will reply.

Do you supply capillary film and emulsion as well?

Yes. We supply emulsions and capillary film alongside our exposure equipment, so the whole process is matched and supported by one supplier.

Do you install and support the equipment?

Yes. We provide delivery, installation, operator training and ongoing technical support across Australia and New Zealand.
